BD9

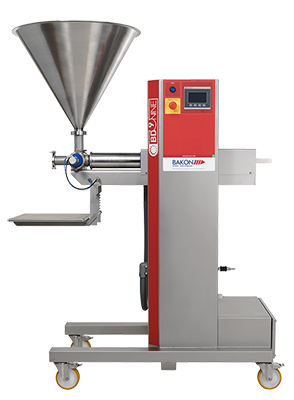

Accurate depositing is done with the BD9 by BAKON

The BD9 is a very advanced depositing machine that guarantees years of efficient production.

This versatile and reliable BD9 DEPOSITOR deposits liquid and semi-liquid products with great accuracy. Due to the servo driven depositing cylinder we perfect control over the depositing movement.

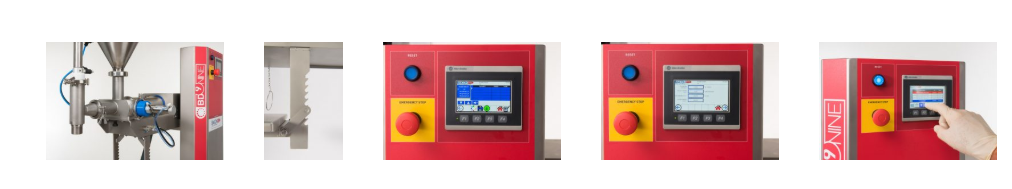

Recipe selection and product changes are easily accomplished using the full-colour touch screen (available in many languages).


Download the brochure (PDF)

Watch video (Extended version)
Key features
  • Equipped with full-colour touch screen for easy setting and storing of recipes and parameters, such as working height, dosing speed, cylinder type, etc.
  • Hopper volume: 35 or 65 liter
  • Dosing volumes: 10-100, 36-180, 110-475 and 220-1100 ml.
  • Dosing speed is very accurate adjustable through the full-colour touch screen
  • Electrically adjustable dosing unit (can be set at any height)
  • Working table is manually adjustable in height
  • Easily movable on 4 swivels casters (2 with brakes)
  • Completely stainless steel and other non-corroding materials
Operation

The BD9 DEPOSITOR is ready for use within minutes. Move the BD9 into the right working position, fill the hopper (which is easy to lower by an electrical drive), choose the right recipe and the BD9 is ready to start depositing.

Due to the unique full-colour control panel and the advanced software system it’s easy to program different recipes and parameters. With the recipe tool you are able to compose and store specific recipes for different products.

Cleaning and (dis)assembling of the machine are simply done and without the use of any tools.

Benefits
  • Industrial design
  • Robust and strong
  • Economical
  • Movable
  • Easy to operate
  • Hygenic design

Stand-alone machine

Inline machine
Liquid and semi-liquid products
e.g. cake batter, muffin batter, bavarois, jam, fruit fillings, crème, cream cheese, soup, etc.
Dimensions

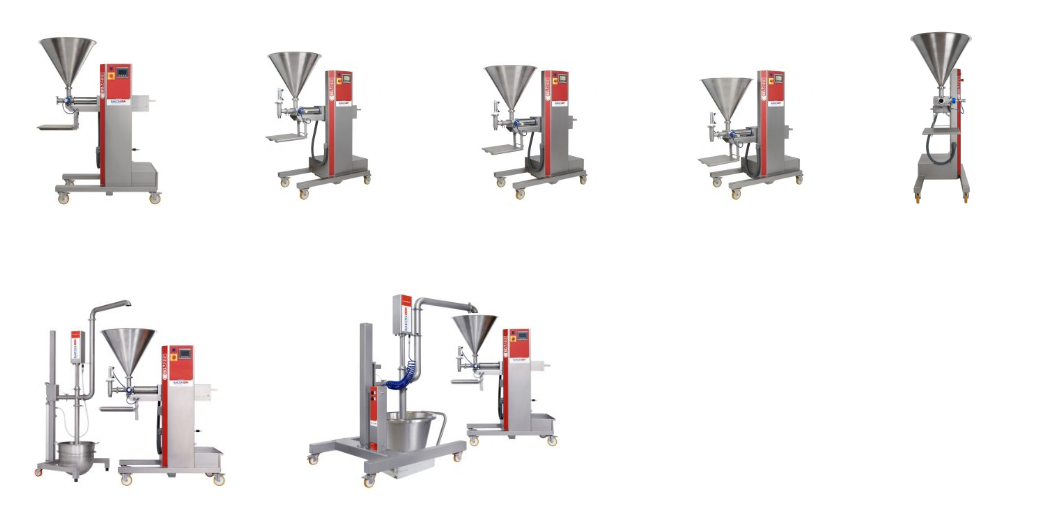

Depends on the model

Options
  • Cylinder with piston 10/100 ml
  • Cylinder with piston 36/180 ml
  • Cylinder with piston 110/475 ml
  • Cylinder with piston 220/1100 ml
  • Handgun with hose
  • Vertical and horizontal cut off nozzle
  • Dripless nozzles
  • Adapter for different spouts
  • Dosing outlet 90° curve
  • Footpedal
  • Decorating heads
  • Injection needles
  • Cake Decorator unit
  • Funnel 35 of 65 liter
  • Various conveyor systems
Technical specifications
Air pressure

6 bar

Voltage

230 VAC – 50 Hz

Power

0,3 kW

Machine capacity
Medium
6 bar
Operation pressure
10 - 1100 ml
Depositing volume
35 or 65 ltr
Hopper volume
