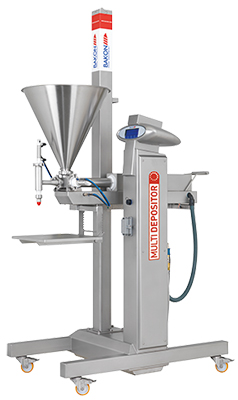

Multi Depositing Satellite
All round depositing with the MULTI DEPOSITOR SATELLITE

The MULTI DEPOSITOR SATELLITE is our very advanced depositing machine that guarantees years of efficient production.

This versatile and reliable depositor deposits products with the accuracy that is standard for all bakery equipment manufactured by BAKON.

Recipe selection and product changes are easily accomplished using the full colour touch screen (available in many languages).


Download the brochure (PDF)

Watch video (Extended version)
Key features
  • Full control of parameters, depositing volume, speed, etc.
  • Volume ranging from 10 to 1100 ml per depositing cycle.
  • Recipes download from computer or laptop.
  • Easy program selection on the display.
  • Very accurate height setting executed by frequency controlled drive for easy filling of the funnel.
  • Up to 50 different programs (one program for each product).
  • Available with many attachments (e.g. depositing heads, injectors, guns)
Operation

The MULTI DEPOSITOR is an air operated depositor designed and manufactured to deposit semi-liquid materials. The machine is built on a stainless steel C-frame and is fitted out with swivel wheels, so it can easily be placed over a conveyor.

The machine has its own electrical cabinet and is executed with a unique control panel with an advanced software system. Changing parameters and recipes is fast and simple.

The standard dosage volume is continuously variable between 25 and 150 cc per depositing head. Of course customized solutions are possible!

Benefits
  • Movable
  • Stainless steel
  • Easy to clean
  • Economical
  • HACCP

Stand-alone machine

Inline machine
Semi-liquid products
e.g. cake batter, muffin batter, bavarois, jam, fruit fillings,crème, cream cheese, etc.
Dimensions

Depends on the model

Options
A wide range of accessories are available:
  • Different funnels (e.g. 35 or 65 ltr.)
  • Cylinder with piston 10/100 ml, 36/180 ml, 110/475 ml, 220/1100 ml, etc.
  • Lift-drop nozzle vertical
  • Cut off outlet horizontal
  • Dose hand gun with hose
  • Adapter for plastic spout for hand gun or lift-drop nozzle.
  • Foot pedal
Technical specifications
Compressed air

6 -7 bar

Voltage

230 VAC – 50 Hz

Power

0.09 kW

Air consumption

+ 250 ltr. / min. based on 25 strokes

Machine capacity
High
Medium
+/- 35 ltr.
Funnel content
Max. 60 strokes / min.
Capacity
50
Programs
