Multi Depositor with Cake Decorator
The icing on the cake, the MULTI DEPOSITOR SATELLITE WITH CAKE DECORATOR

The MULTI DEPOSITOR SATELLITE with CAKE DECORATOR is a perfect combination of fast and precise depositing with beautiful and complete finishing.

Recipe selection and product change is easy with all the depositing machines in the MULTI DEPOSITOR range.


Download the brochure (PDF)

Watch video (Extended version)
Key features
  • Full control of parameters, depositing volume, speed, etc.
  • Volume ranging from 10 to 1100 ml per depositing cycle.
  • Recipes download from computer or laptop.
  • Easy program selection on the display.
  • Pneumatic height setting for easy filling of the funnel.
  • Up to 50 different programs (one program for each product).
  • Available with many attachments (e.g. depositing heads, injectors, guns)
Operation

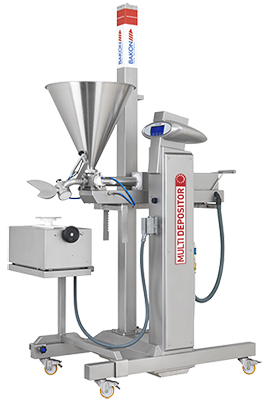

The base for the CAKE DECORATOR is the BAKON MULTI DEPOSITOR SATELLITE, which is our most advanced single shot depositor on the market.

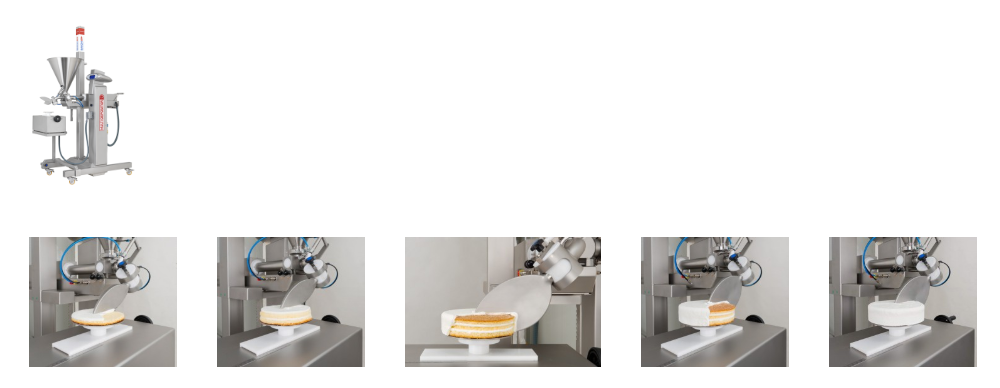

The rotating CAKE DECORATOR is electrically and mechanically connected to the MULTI DEPOSITOR.

It is easy to disconnect the CAKE DECORATOR and use the MULTI DEPOSITOR as a normal single shot depositor to deposit all kinds of other product.

Benefits
  • Movable
  • Stainless steel
  • Easy to clean
  • Economical
  • HACCP

Stand-alone machine

Inline machine
Semi-liquid products
e.g. cake batter, muffin batter, bavarois, jam, fruit fillings,crème, cream cheese, etc.
Dimensions

1350 x 850 x 2300 mm

Options
A wide range of accessories are available:
  • Different funnels (e.g. 35 or 65 ltr.)
  • Cylinder with piston 10/100 ml, 36/180 ml, 110/475 ml, 220/1100 ml, etc.
  • Lift-drop nozzle vertical
  • Cut off outlet horizontal
  • Dose hand gun with hose
  • Adapter for plastic spout for hand gun or lift-drop nozzle.
  • Foot pedal
  • Top / side spout for CAKE DECORATOR.
Technical specifications
Compressed air

6 bar

Voltage

230 VAC – 50 Hz

Power

0.09 kW

Air consumption

+ 250 ltr. / min. (25 strokes / min.)

Machine capacity
Medium
+/- 35 ltr.
Funnel content
Max. 60 strokes / min.
Capacity
50
Programs
