Drop TT

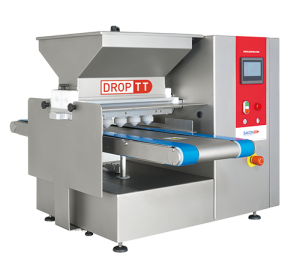

Fast and accurate depositing with the Drop TT

The DROP TT is a table top depositor for fast and efficient depositing of semi-liquid and more solid products. Keywords of this table top bakery machine are: compact, simple, fast and accurate.

Because of its size this depositor is very suitable for traditional bakeries, confectioneries, cake shops but also for catering companies. The DROP TT is easy to use and clean and has a foldable conveyor belt. Programming and entering recipes is simple by using the full colour touch screen.

Key features
  • Very consistent, fast and economical machine.
  • Full colour touch screen to set parameters or enter recipes.
  • Compact size with foldable conveyor.
  • Suitable for all semi-liquid products.
  • Large choice of depositin templates.
  • Made of stainless steel and other non-corroding materials.
  • Rotating template to decorate products with a twist.
  • Cutting wire for easy deposting and cutting of cookie dough.
Operation

High accuracy in depositing is reached by control of the turning angle of the gears of the gearwheel pump. To prevent the nozzle/needle from dripping, the gears can be turned backwards, to release the pressure from the nozzles.

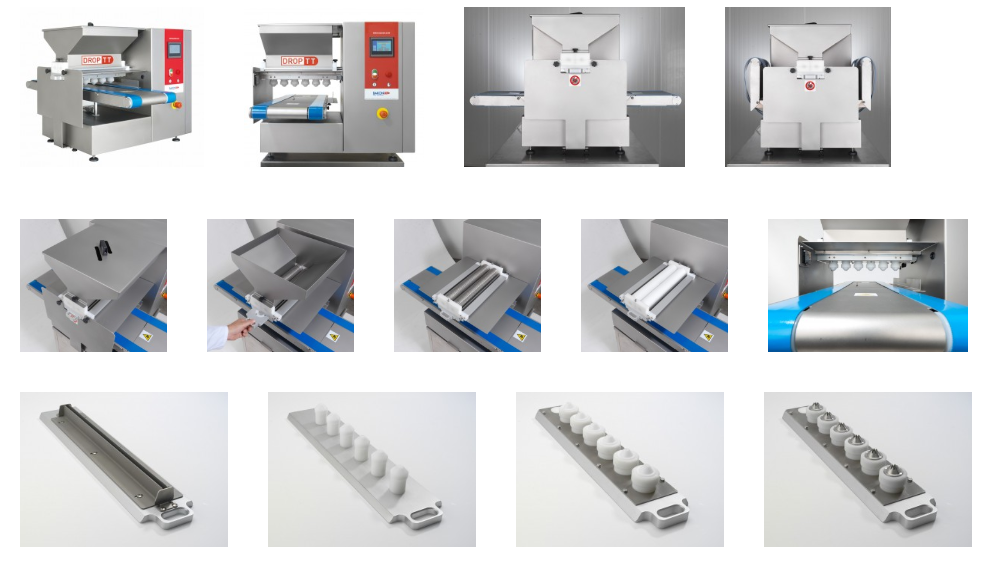

Different templates can be mounted underneath the depositing head. The DROP TT is equipped with a programmable controller to control the gears, rotating nozzles, up and down movement and the conveyor.

Up to 50 products can be programmed and selected on the touch screen in several languages (English, French, German, Russian, Chinese and Dutch). Parameters such as depositing speed, volume, vacuum, production speed and conveyor speed can be changed during production.

Benefits
  • Compact
  • Easy to operate
  • Movable
  • Easy to clean
  • HACCP

Stand-alone machine (Table Top)
All semi-liquid to solid products
e.g. ├ęclairs, choux pastry, cupcakes, macaroons, muffins, biscuits, cakes, mousses
Dimensions

800 x 560 x 685 mm (l x w x h)

800 x 400 x 685 mm (folded)

Options

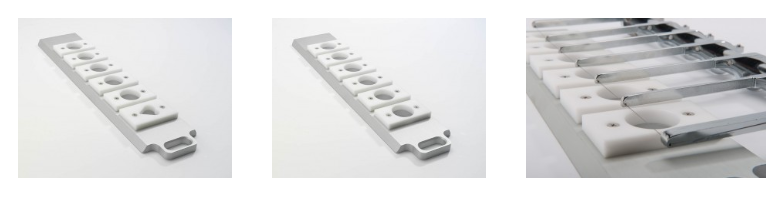

CHANGEABLE TEMPLATES

The DROP TT can be supplied with a great variety changeable templates.

Technical specifications
Voltage

1 x 230 VAC

Power

1.0 kW

Weight

125 kg

Machine capacity
High
Medium
2400
Cupcakes per hour
9000
Macarons per hour
Max. 400 mm
Working width
